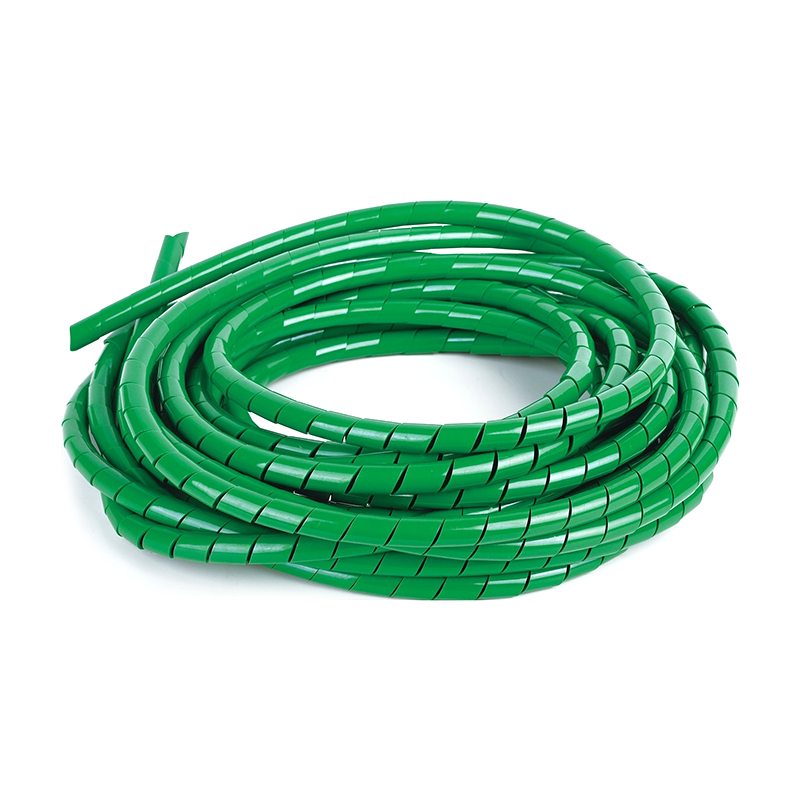

PE Fire Retardant Spiral Wraping Band
PE Fire Retardant Spiral Wraping Band
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
[Material] environmental PE, Heat resistance - 40 to 80 degree, can be customized level UL94VO, fire retardant.
[Temperature range] -40 to 80 degree, available customize UL94VO fire retardant material.

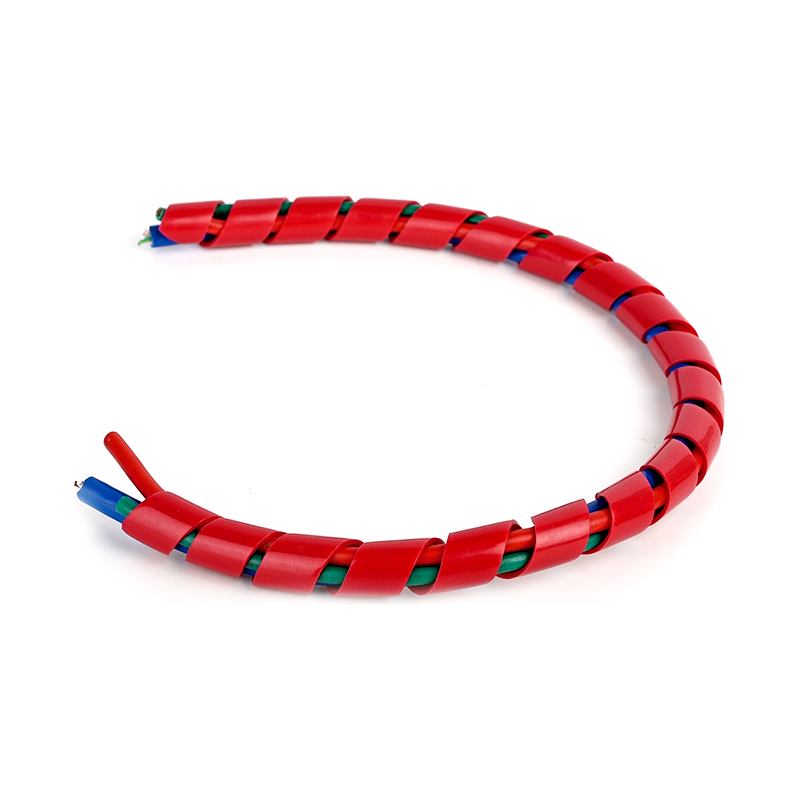

[Usage] First fix one end of the starting point with a protective belt, and then wrap it around in a clockwise direction, so that the electrical wiring harness can be
[integrated Application] Protection sleeve for electric wires, and make them insulation and look nice.
| Specification | Inner diameter | Outer diameter | Thread pitch | Thickness | Packing(M/Roll) |
| ZD-03 | 2±0.5 | 3±0.5 | 5±1 | 0.5±0.1 | 50 |
| ZD-04 | 3±0.5 | 4±0.5 | 6±1 | 0.5±0.1 | 50 |
| ZD-05 | 4±0.6 | 5±0.6 | 7±1 | 0.5±0.1 | 50 |
| ZD-06 | 5±0.5 | 6±0.5 | 8±2 | 0.5±0.1 | 20 |
| ZD-08 | 7±0.5 | 8±0.5 | 10±2 | 0.5±0.1 | 12 |
| ZD-10 | 8.8±0.5 | 10±0.5 | 12±2 | 0.6±0.1 | 10 |
| ZD-12 | 10.5±0.5 | 12±0.5 | 14±2 | 0.75±0.1 | 8 |
| ZD-14 | 12±1 | 14±1 | 16±2 | 1±0.1 | 5 |
| ZD-16 | 14±1 | 16±1 | 18±2 | 1±0.1 | 4 |
| ZD-18 | 16±1 | 18±1 | 20±2 | 1±0.1 | 3 |
| ZD-20 | 18±1 | 20±1 | 22±2 | 1±0.1 | 3 |
| ZD-25 | 22±1 | 25±1 | 27±2 | 1.2±0.2 | 3 |
| ZD-30 | 27±1 | 30±1 | 32±2 | 1.5±0.2 | 3 |
