plasticcorrugatedpipe

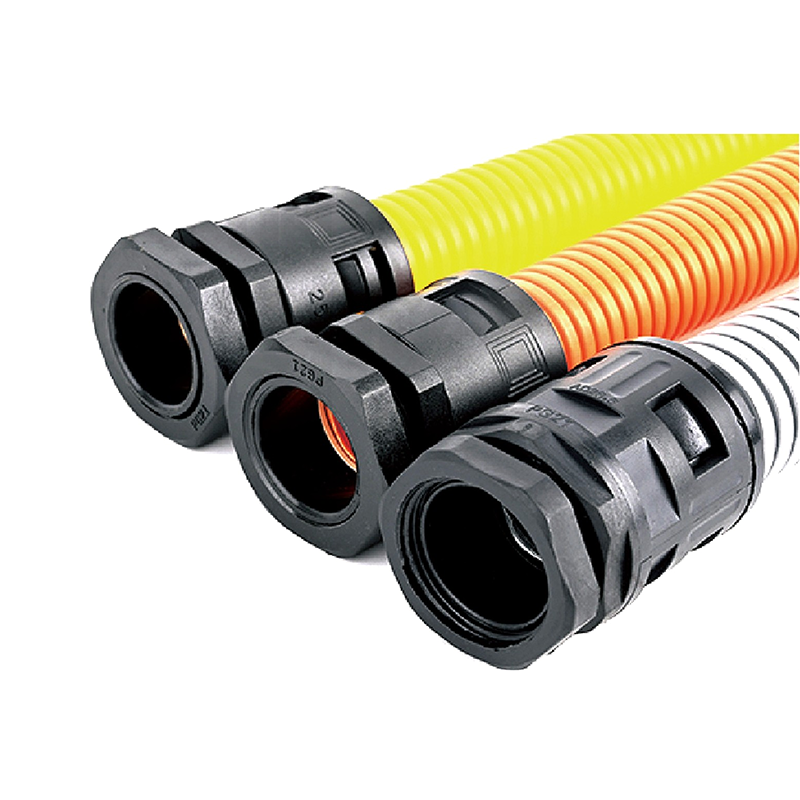

Corrugated Pipe Quick Coupling
Corrugated Pipe Quick Coupling
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
[Thread] Metric,PG,G(PF).
[Meterials] UL approved Nylon PA66(Fire rating UL94V-2), available customize UL certificated 94v-O tire proof material
[Waterproof rate] IP68- l 0.
[Working temperature] -40 to 120 degree.
[Features] special design, coupling tight the pipe and connector together, easy installation and work efficently.
| Thread AG | Specification | Mogel | Pipe size | Thread OD(mm) | Thread Lengtn(mm) | Packing(pcs/pkg) |
| PG7 | PG7-AD10 | AD10 | 1/4"管 | 12.5 | 8.5 | 50 |
| PG9 | PG9-AD13 | AD13 | 5/16"管 | 15.2 | 10 | 50 |
| PG11 | PG11-AD15.8 | AD15.8 | 3/8"管 | 18.6 | 12.5 | 50 |
| PG13.5 | PG13.5-AD15.8 | AD15.8 | 3/8"管 | 20.4 | 12.5 | 50 |
| PG13.5-AD18.5 | AD18.5 | 3/8"管 | 20.4 | 12.5 | 50 | |
| PG16 | PG16-AD21.2 | AD21.2 | 1/2'管 | 22.5 | 13 | 50 |
| PG21 | PG21-AD25 | AD25 | 3/4"管 | 28.3 | 13 | 50 |
| PG21-AD28.5 | AD28.5 | 3/4"管 | 28.3 | 13 | 20 | |
| PG29 | PG29-AD34.5 | AD34.5 | 1"管 | 37 | 14 | 10 |
| PG36 | PG36-AD42.5 | AD42.5 | 11/4管 | 47 | 15 | 10 |
| PG42 | PG42-AD42.5 | AD42.5 | 11/4"管 | 54 | 16 | 10 |
| PG48 | PG48-AD54.5 | AD54.5 | 2"管 | 59.3 | 16 | 10 |
